Cooling System/Intercooler for 2015 Audi TT Quattro

Select Intercooler Part

2015 Audi TT Quattro

Change vehicle

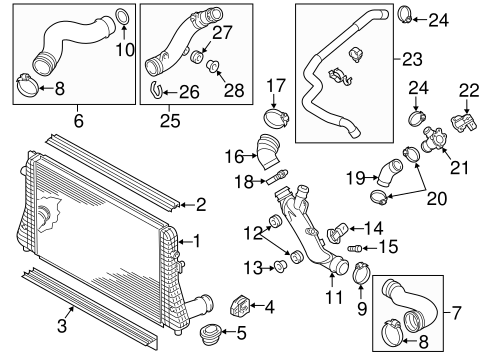

Cooling System/Intercooler for 2015 Audi TT Quattro #1
No. Part # Part # / Description List Price Price
1 3C0-145-805-AM 3C0-145-805-AM / Inter-Cooler

2011-15 W/ AWD, TTS

$520.00 $393.12
2 1K0-121-345-AJ 1K0-121-345-AJ / Inter-Cooler Upper Seal

2011-15 W/ AWD, TTS

$10.06 $6.54
3 1K0-121-345-AK 1K0-121-345-AK / Inter-Cooler Lower Seal

2011-15 W/ AWD, TTS

$10.06 $6.54
4 1K0-121-367-P 1K0-121-367-P / Radiator Assembly Upper Insulator

Inter-cooler Upper Bracket, LEFT

2011-15 W/ AWD, TTS

$46.00 $29.90
4 1K0-121-367-P 1K0-121-367-P / Radiator Assembly Upper Insulator

Inter-cooler Upper Bracket, RIGHT

2011-15 W/ AWD, TTS

$46.00 $29.90
5 1K0-121-367-F 1K0-121-367-F / Inter-Cooler Lower Insulator

Inter-cooler Lower Insulator, RIGHT

2011-15 W/ AWD, TTS

$9.42 $6.12
5 1K0-121-367-F 1K0-121-367-F / Inter-Cooler Lower Insulator

Inter-cooler Lower Insulator, LEFT

2011-15 W/ AWD, TTS

$9.42 $6.12
6 8J0-145-832-A 8J0-145-832-A / Front Pipe

Front Pipe, RIGHT

2011-15 W/ AWD, TTS

$245.00 $191.10
7 8J0-145-834 8J0-145-834 / Front Pipe

Front Pipe, LEFT

2011-15 W/ AWD, TTS

$145.00 $113.10
8 N-106-199-01 N-106-199-01 / Hose Clamp

Front Pipe Clamp, RIGHT

2011-15 W/ AWD, TTS, FRONT

$10.16 $6.60
9 N-106-199-01 N-106-199-01 / Hose Clamp

Front Pipe Clamp, LEFT

2011-15 W/ AWD, TTS, REAR

$10.16 $6.60
10 3C0-145-117-F 3C0-145-117-F / Lower Hose Seal

Front Pipe Seal, RIGHT

2011-15 W/ AWD, TTS

$10.50 $6.83
11 1K0-145-770-P 1K0-145-770-P / Connector Pipe

2011-15 W/ AWD, TTS

$181.67 $141.70
12 867-129-669 867-129-669 / Air Pipe Grommet

Connector Pipe Grommet

2011-15 W/ AWD, TTS

$3.40 $2.21
13 1K0-129-734-B 1K0-129-734-B / Lower Press Tube Bushing

Connector Pipe Bushing

2011-15 W/ AWD, TTS

$10.92 $7.10
14 038-906-051-C 038-906-051-C / Pressure Sensor

2011-15 W/ AWD, TTS

$128.33 $100.10
15 N-901-720-04 N-901-720-04 / Air Mass Sensor Screw

Pressure Sensor Bolt

2011-15 W/ AWD, TTS

$1.30 $0.85
16 1K0-145-838-G 1K0-145-838-G / Pressure Hose

Air Duct

2011-15 W/ AWD, TTS

$105.00 $81.90
17 N-105-444-01 N-105-444-01 / Upper Press Hose Clamp

Air Duct Clamp

2011-15 W/ AWD, TTS, UPPER

$11.68 $7.59
18 N-105-189-01 N-105-189-01 / Press Hose Clamp

Air Duct Clamp

2011-15 W/ AWD, TTS, LOWER

$9.00 $5.85
19 06F-145-845 06F-145-845 / Pressure Hose

2011-15 W/ AWD, TTS

$93.00 $72.54
20 N-909-265-01 N-909-265-01 / Hose Clamp

Pressure Hose Clamp

2011-15 W/ AWD, TTS

$9.08 $5.90
21 06F-145-751-B 06F-145-751-B / Flange

2011-15 W/ AWD, TTS

$151.67 $118.30
22 06H-145-710-D 06H-145-710-D / Cut-Off Valve

2011-15 W/ AWD, TTS

$146.67 $114.40
23 06F-145-693 06F-145-693 / Air Pipe

2011-15 W/ AWD, TTS

$185.00 $144.30
24 N-906-871-01 N-906-871-01 / Clamp

Air Pipe Clamp

2011-15 W/ AWD, TTS

$5.84 $3.80
25 1K0-145-762-BM 1K0-145-762-BM / Pressure Pipe

2011-15 W/ AWD, TTS

$261.67 $204.10
26 1J0-145-769-B 1J0-145-769-B / Pressure Pipe Retainer Clip

2011-15 W/ AWD, TTS

$5.78 $3.76
27 867-129-669 867-129-669 / Air Pipe Grommet

Pressure Pipe Grommet

2011-15 W/ AWD, TTS

$3.40 $2.21
28 1K0-129-734-B 1K0-129-734-B / Lower Press Tube Bushing

Pressure Pipe Bushing

2011-15 W/ AWD, TTS

$10.92 $7.10
